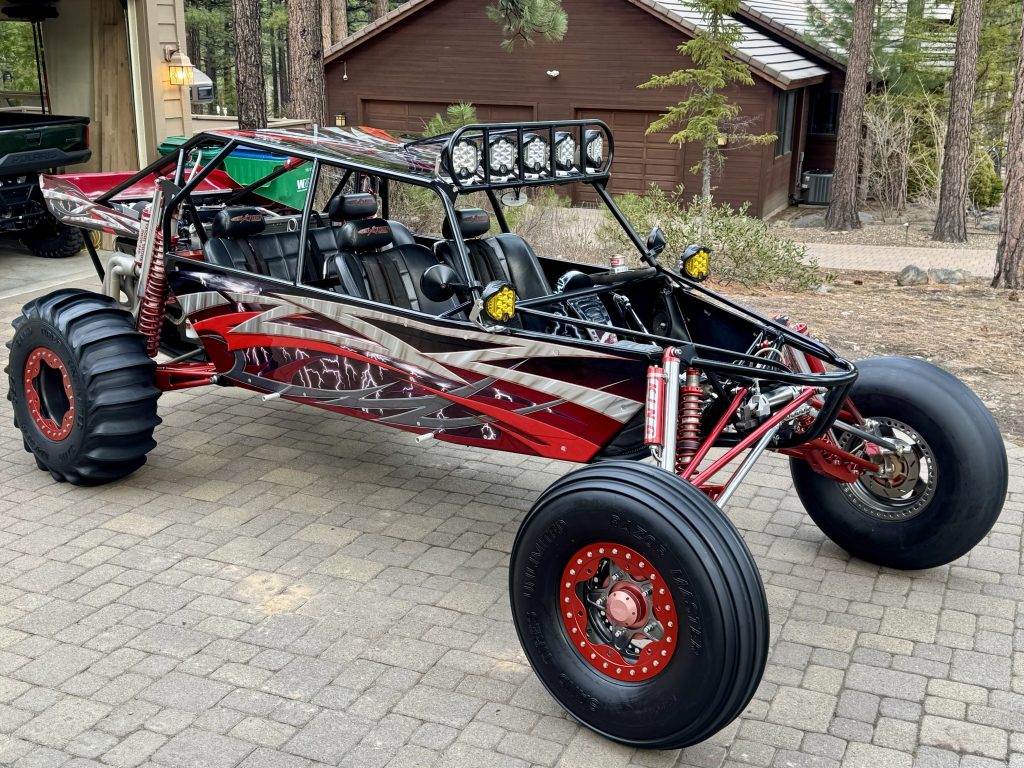

FOR SALE - 2006 Extreme Performance DTD Sandrail
This is a 2 owner garage queen car. I bought it from the original owner/builder 3 years ago. In incredible condition. Motor is dialed. Suspension is dialed. Heims and bushings are tight. CVs are freshly re-packed. Fresh fluids. Very very low hours. The car needs nothing. Ready to go today.
The car will come with paper receipts, including the original build sheets (car and motor) and various…
FOR SALE – 2006 Extreme Performance DTD Sandrail
This is a 2 owner garage queen car. I bought it from the original owner/builder 3 years ago. In incredible condition. Motor is dialed. Suspension is dialed. Heims and bushings are tight. CVs are freshly re-packed. Fresh fluids. Very very low hours. The car needs nothing. Ready to go today.
The car will come with paper receipts, including the original build sheets (car and motor) and various maintenance records, as well as 2 buggy whips (one new, one OG with top light), headsets, loading tires on centerline wheels, and a variety of spare fluids, filters, parts, etc
Short description:
-
538” big block, NA, 700HP on 91 pump gas
-
Mendeola S4S with pump and trans cooler
-
King triple bypasses all 4 corners
-
OMF beadlocks with STU 35.5s and 12.5-17s
-
AIM Dash, PCI car to car, full stereo
-
934 CVs, 2” hollows
-
Airbrush paint job
Longer description:
Car:
-
2006 Extreme Performance Double Throwdown
-
Stainless/chrome package (floors, handles, foot bars, pedal slide… see photos)
-
4 corner brake system with turning brake and adjustable pedals
-
Extreme DTD power steering
-
Large center console option with AIM MXL digital dash
-
OMF 17” billet wheels with beadlocks and stiffener rings
-
Custom light bar rack with 5 LED pods (originally had HID spots)
-
A pillar LED pods (originally had HID spots)
-
Wired for a collision light on the top/rear of the chassis
-
King triple bypass shocks, chrome and anodized red
-
Mendeola S4S with trans pump and cooler
-
Kennedy 8” double disc clutch
-
934 CVs and axles
-
2” hollow spindles with King Kong snouts, bearings, seals, races
-
Leather Extreme Performance branded seats with adjustable headrests
-
Driver seat slider
-
Sparco suede steering wheel
-
DNE Motorsports 538 big block (see motor specs below)
-
8:1 exhaust system
-
Billet specialties pulley package
-
MSD Pro Billet distributor
-
PCI car to car with Icom radio
-
XM Radio
-
Bluetooth receiver
-
JL audio 4 channel amp with (4) 6.5” component speakers
-
JL audio subwoofer amp with (1) 10” sub
-
Airbrush paint job
Motor:
-
DNE Motorsports 538 cu in big block chevy
-
Bore: 4.560
-
Stroke: 4.500
-
Block: Donovan D500 aluminum tall deck
-
0.400 raised came
-
0.904 bronze lifter bushings/roller cam bearings
-
Crankshaft: Lunati 4340 forged
-
Connecting rods: Lunati Pro Mod I Beam 6.660 length
-
Pistons: Mahle Motorsports Pro Series w/ pins
-
Rings: Mahle top/Perfect Circle THG 2nd/Perfect Circle CP20 LT Oil assy
-
Main/Rod Bearings: Clevite 77 H Series
-
Camshaft: 55mm DNE/LSM Mech Roler 277/287 Dur. 115 c/l 0.460 in lobe/0.460 ex lobe
-
Roller Lifters: Morel TieBar 0.904 dia with 0.810 wheel
-
Timing Set: Cloyes True Roller with torrington bearing
-
Rockers: Jesel Sportsman series shaft mounted 1.75 ratio int / 1.70 ratio ex
-
Cylinder Heads: CFE/BMF CNC Ported 385cc int port
-
Valves: Manley Intake and exhaust
-
Retainers/Locks: Manley titanium/10 deg steel locks
-
Springs: LSM Dual spring
-
Pushrods: Manton 7/16 to ⅜ single tapper .120 wall int & ½ to 7/16 single tapper 0.158 wall ex
-
Manifold: DNE Edelbrock/Wilson ported single 4500 type
-
Gaskets: Cometic
-
Oil system: DNE/Dan Olson Tappered sump/DNE blueprinted HV oil pump w/ anti cavitation slots / welded in pick up tube
-
Compression ratio: 10.95:1
-
Valve lash hot: int. 0.022 ex 0.024
-
Spark plugs: Autolite AR 3933
$69,000.
Contact Devin (407) 212-8939.
Located in Reno, NV.
